Intelligent Production Line for Construction Machinery Cylinders
Machine Tool Selection
This production line selects the Dean machine tool (formerly "Doosan Machine Tool") PUMA4100 series. This series of CNC lathes has 12/15/21 inch and large through-hole diameters, making it a new horizontal turning center suitable for processing various types of medium to large workpieces.
Composition and Characteristics of the Production Line

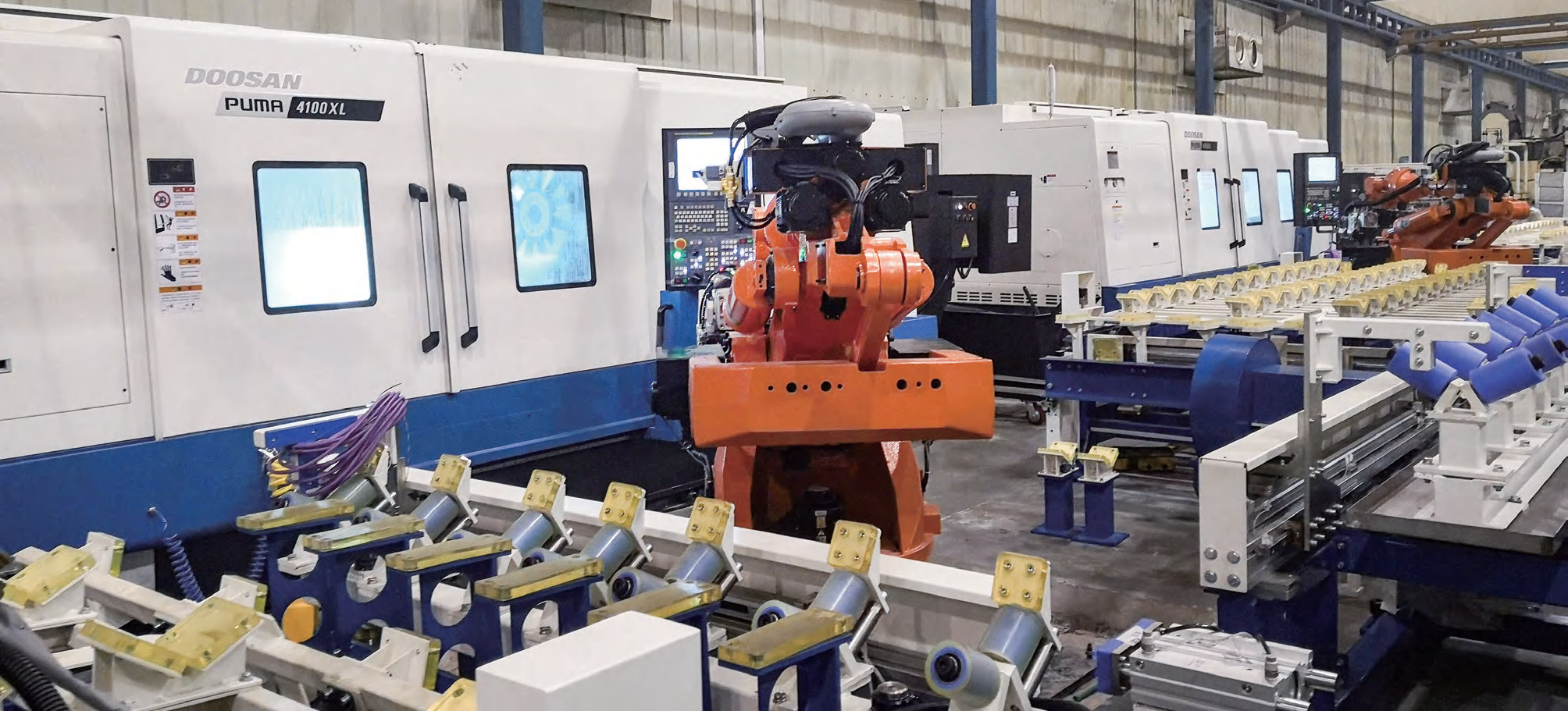

The hydraulic cylinder automation processing line consists of 3 CNC lathes and 3 multi-joint robots (the cylinder sleeve production line consists of 1 turning center and 1 robot; the piston rod production line consists of 2 turning centers and 2 robots).
Characteristics of the Production Line
- Process: The cylinder uses a special new process, completing the processing of both ends of the cylinder in one clamping.
- Chip Handling: A high-pressure cooling liquid system is used, combined with optimized processing parameters, to solve the problem of chip winding.
- Automation System: A multi-joint robot form is used to facilitate avoiding interference with the empty center frame; the robot gripping system uses a special lifting form, replacing the machine tool's support structure, reducing chip accumulation inside the machine tool, and can accommodate a wide range of different diameter products without the need to replace parts.
Project Achievements
The intelligent production line for hydraulic cylinder processing provided by Shenming Technology not only improves product processing quality but also greatly enhances product processing efficiency, reduces manual assistance time, lowers labor intensity, and the production line is stable and reliable, receiving positive feedback from users.
